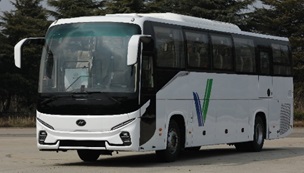

KLQ6126LY
MAIN PARAMETERS
| BUS Model | KLQ6126LY (12.4 METER) |
| Standard seat number | 49+1+1 ( 2x2 seats) |
| Overall dimensions | mm 12400x2550x3850 |
| Manufacturer’s max. total mass | kg 18000 |
| Overhang front / rear | mm 2850/3400 |
| Max speed | km/h 100 |
| Kerb mass | kg 13500 |
| Fuel tank | L 360 |
| Engline Model | Chinese Yuchai YC6L330-50 (330Hp, Euro V) |
| Clutch: | SACHS clutch |
| Gearbox | Fast Manual Transmission |
| Propeller shaft | Strengthened propeller shaft |
| Suspension | Air suspension |
| Axle | Fangsheng front and rear axle (drum) |
| Brake | Dual-circuit service brake; spring energy parking brake |
| Steering | ZF Power steering gear |
| Tyres | 295/80R22.5 |
| Others | Stainless steel wheel cover; with ABS sensor; |
| A/C | 32000kCal/h, Bock compressor; NTC Aircon |
| Toilet | Without |

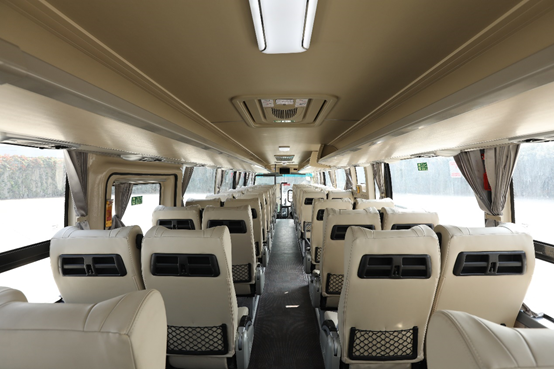

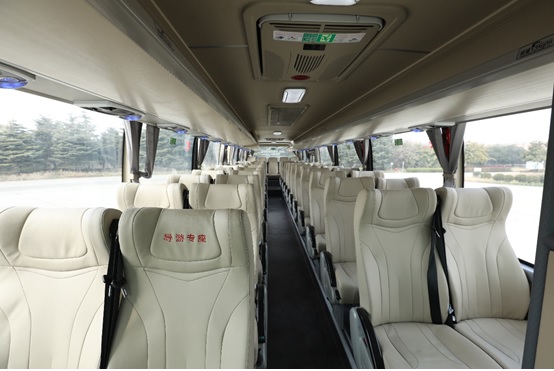

| Seats | 2x2 seat |
| Windows | Seal window glass, Rear window has a sliding glass Clear glass |
| Audio Visual | G-BOS Video (19’ TV front) |
| Door | Remote control |
| Rear view mirror | Electric |
| Floor | Anti-attrition floor leatheroid (gray) | Others | Color reverse camera (G-BOS: CCTV); Digital Clock; Manual Sun visor; Cloth folding window curtain; 2 emergency roof exit; Automatic fire extinguisher device in engine compartment; Safety hammer;2kg fire extinguisher; |
click any of the images above to enlarge
The manufacturer reserves the right to change the technical specs for better improvement without prior notice.
